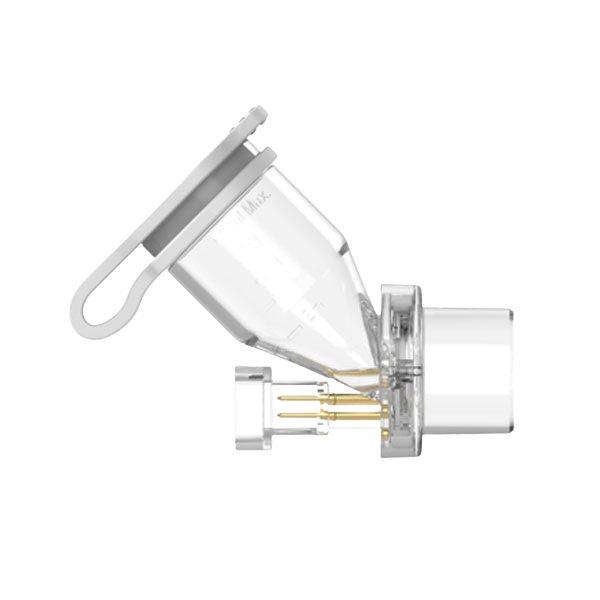

We are proud to introduce the AirICU Pro1 medication cup

It is one of the most important aspects of the end-to-end AirICU® solution. Equipped with AiMesh polymer nebulizer technology, the cup achieves the ultimate in safety and more efficient delivery of drug nebulization rates.

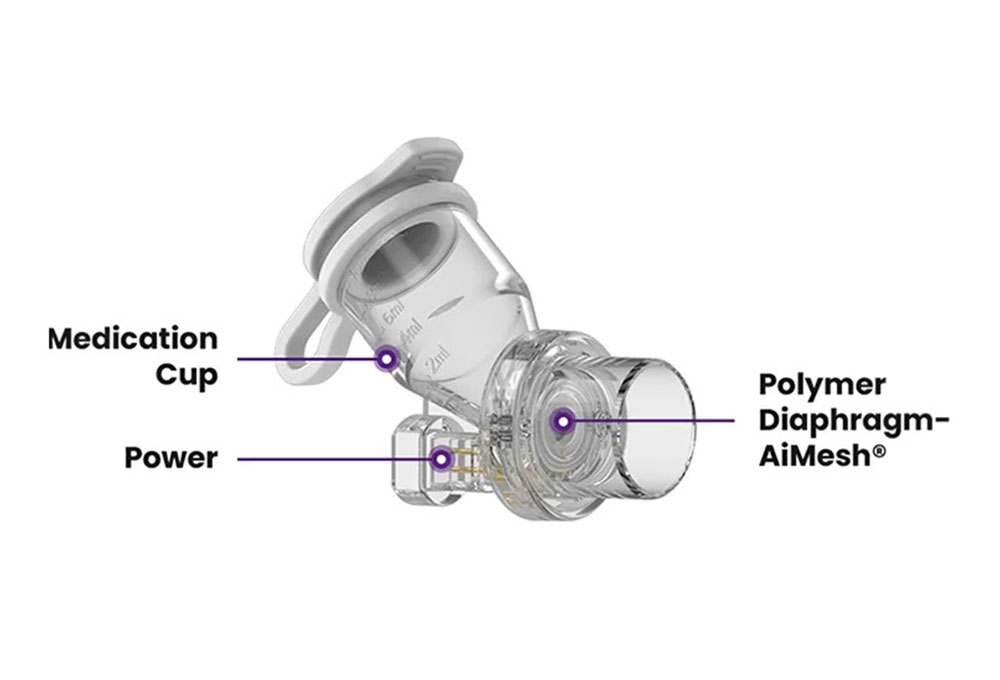

  • AiMesh®Polymer Diaphragm
  • 10mL capacity cup
  • Simple and straightforward installation
  • Almost completely silent
  • Designed for single patient use
  • Can be used intermittently for 28 days or continuously for 7 days
  • No additional flow required
  • Refill the medication cup without disrupting the circuit
Aerogen Ultra, optional delivery of oxygen
Effectiveness

Validity

AirICU® enhances the efficient administration of medication across various respiratory modalities. It demonstrated superior drug deposition during invasive mechanical ventilation (IMV), non-invasive ventilation (NIV), and high-flow therapy (HF) compared to jet nebulizers. Additionally, research indicates that breathing sensor technology is 4 to 7 times more effective than continuous atomization.

Patient care

Clinical Feedback

  • Enhanced lung function in patients receiving non-invasive ventilation (NIV).
  • Similar bronchodilator effectiveness during high-flow therapy (HF).
  • Decreased rates of hospital admissions, shorter median lengths of stay in emergency departments, and fewer treatments and reduced time needed to achieve symptom relief in patients with severe ventilation (SV).
  • Notable differences in FEV1, FVC, breathlessness scores, respiratory rate (RR), and PaCO2 from baseline to 120 minutes in individuals experiencing acute exacerbations of chronic obstructive pulmonary disease (COPD).
  • A relative increase in FEV1 among patients with reversible obstructive lung disease.
  • Attainment of a mild asthma score following an asthma exacerbation.
  • Optimal results when utilized alongside the AirICU Aerotank.
Workflow

Processes

AirICU® streamlines the workflow.

  • It is a closed-circuit aerosol drug delivery system that allows for medication administration during invasive mechanical ventilation (IMV) or non-invasive ventilation (NIV) without the necessity of breaking the circuit.
  • AirICU® combined with the iBreathe® Critical Care System can provide a complete nebulization solution - including vital signs, nebulization status, nebulization history and other solutions.
  • AirICU® provides integrated aerosol delivery alongside high-flow therapy and can be utilized wit

Tutorial

To know how this work and benefit for your workflow.

Discover our technology

Invasive mechanical ventilation enquiries

Enquiries

Our team and our representatives are available globally to answer your questions.

How can we help

Product support

General

In what scenarios will the Air ICU product be used and with what devices used in hospital wards?

The AirICU kit is widely used in ICU, NICU, PICU, emergency, and general wards. It integrates with ventilators and HFNC systems, optimizing nebulization with the Air360 module for efficient inhalation therapy. It also functions independently with the AeroTank system and customized masks, meeting diverse patient needs for oxygen delivery and nebulization.

What are the advantages of AirICU products?

AirICU products utilize advanced AiMesh® technology, offering a more durable medication cup compared to traditional metal mesh. Studies show mesh nebulizers achieve superior drug deposition compared to ultrasonic and jet nebulizers. Additionally, Air ICU's smart nebulization (Air360®) with breath-sensing technology further enhances inhaled drug delivery efficiency.

What parts need to be replaced for each use?

Except for the high temperature resistance version of accessories, the AirICU system includes a reusable main unit and disposable components such as the medication cup and accessories, designed for single-patient use. The main unit must be cleaned before reuse, while the medication cup and other accessories should be replaced for each new patient to ensure hygiene and safety.

Why can't children(pediatric)/infants(neonate) be connected to the induction module?

Pediatric and neonatal tidal flow is minimal, requiring a highly sensitive induction module. While the adult induction mode is already in use, the pediatric/neonatal version is still under development and testing to ensure precision. Our goal is to deliver the highest quality technology for optimal patient care.

How long does the Medication Cup last?

Medication Cup, T-Piece (including adult, child and infant), Air Flow Sensor. 28 days (in intermittent use, 4 treatments per day) 7 days (continuous use)

How many holes are there in the nebulizer net of the Medication Cup?

Approximately 2,000

How many times a second does the nebulizer sheet vibrate?

130,000 times per second.

What is the approximate service life of the battery in the AirICU mainframe?

5 years

    Please enter the 4 digit security code, shown below:

    AirICU Pro1
    AirICU Pro1

    Core medical material to ensure the safety of nebulization. Liquid cup capacity up to 10mL. AiMesh® nebulizer tablets revolutionize drug delivery pass rates.
    Air Flow Sensor
    Air Flow Sensor

    Single-patient-use device that facilitates aerosol drug delivery at every stage of a patient's respiratory journey (IMV, NIV, HF and SV)
